VenusX Linear Accelerator
VenusX Linear Accelerator

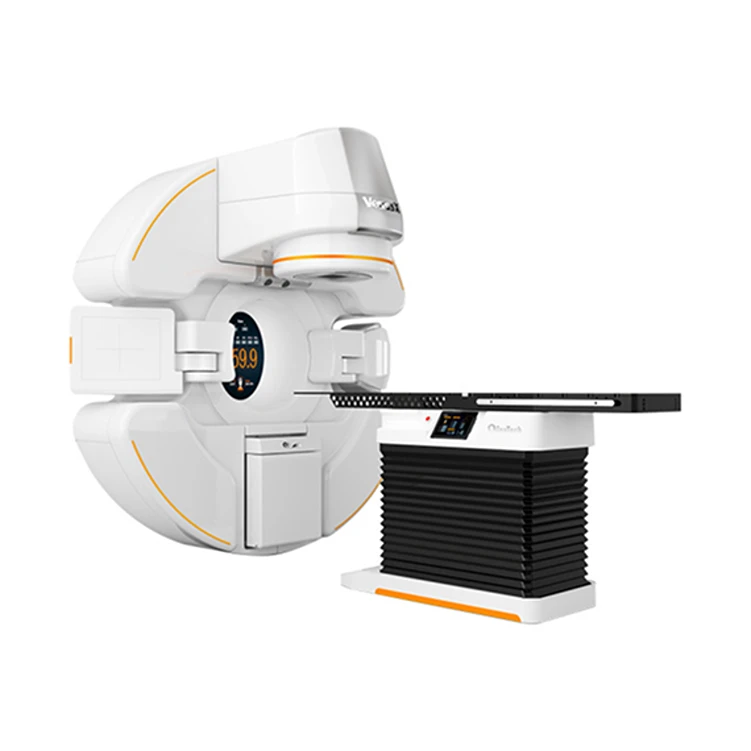

The VenusX is a C-Arm gantry linear accelerator with kV imaging system, MV imaging system, BPS optical surface image guidance soltuions (SGRT), 4D & 6D treatment couch option, and other key components. It is designed for the delivery of three-dimensional conformal radiotherapy, intensity-modulated radiotherapy, volumetric modulated arc therapy, Stereotactic Radiosurgery, Stereotactic Radiotherapy, Stereotactic Body Radiotherapy, image-guided radiotherapy for the treatment of tumour patients. The system supports multiple image-guided positioning modes, including kV–kV, kV–MV, MV–MV, Surface Guided (SGRT) and CBCT-based hybrid imaging.
It is equipped with a proprietary orthogonal dual-layer multileaf collimation technology, which improves dose conformity to the target and enhances dose uniformity, while providing better protection for organs at risk. This enables more precise treatment planning and delivery, meeting clinical requirements for the accurate treatment of complex cases.

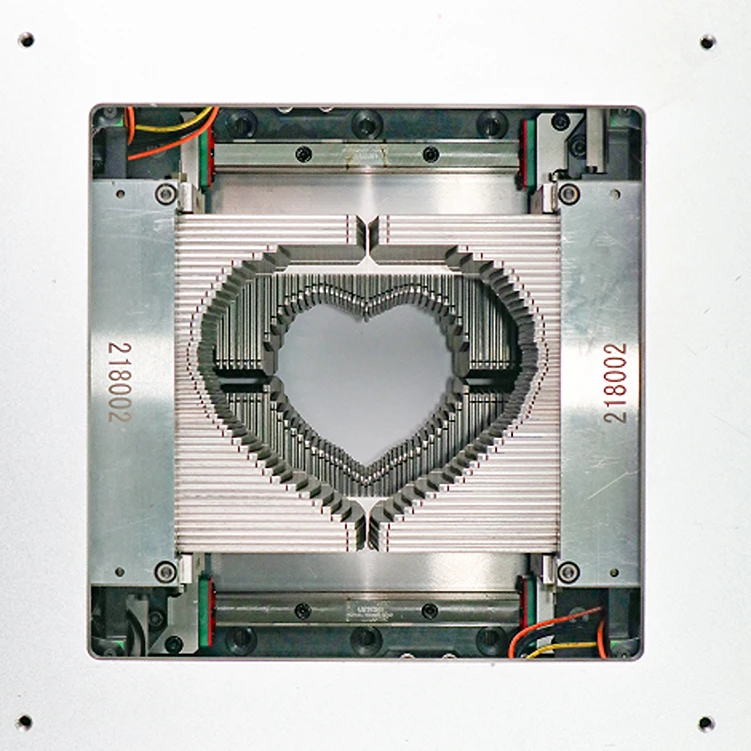

Orthogonal Dual-Layer Collimation
The system adopts an orthogonal dual-layer collimation design comprising 204 leaves (102 opposing pairs) arranged in two perpendicular layers. Precise radiation dose shaping is achieved through the vertical movement of the leaves and their mutual shielding.
Compared with conventional single-layer collimation technology, the orthogonal dual-layer approach significantly improves target dose conformity and dose uniformity. It also offers clear advantages in protecting surrounding healthy tissue and enhancing overall treatment efficiency.
Orthogonal Dual-Layer Collimation
The system adopts an orthogonal dual-layer collimation design comprising 204 leaves (102 opposing pairs) arranged in two perpendicular layers. Precise radiation dose shaping is achieved through the vertical movement of the leaves and their mutual shielding.
Compared with conventional single-layer collimation technology, the orthogonal dual-layer approach significantly improves target dose conformity and dose uniformity. It also offers clear advantages in protecting surrounding healthy tissue and enhancing overall treatment efficiency.

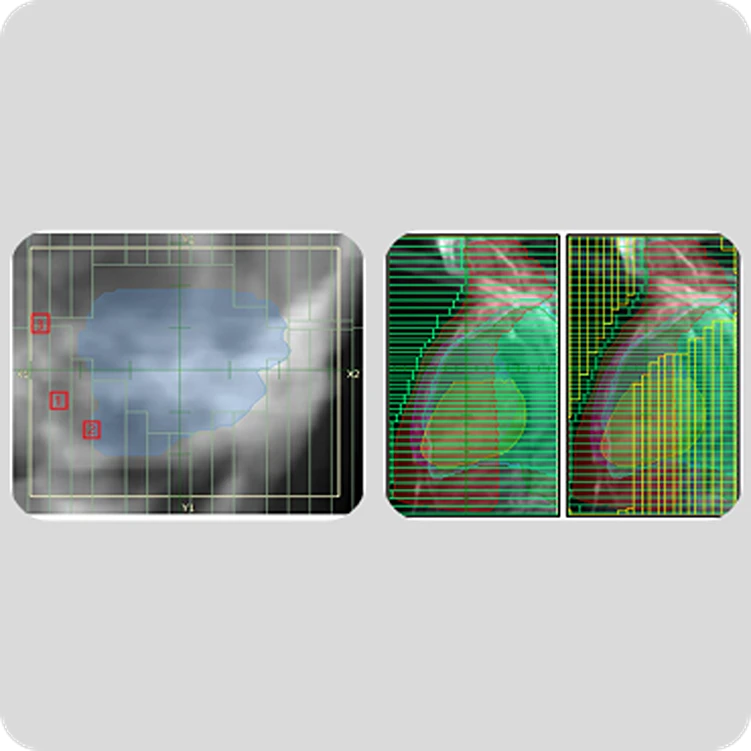

Low Leakage Radiation
Non-treatment areas are protected by dual-layer shielding, effectively reducing leakage dose. In thoracic tumours such as breast, oesophageal, and lung cancers, this enables improved protection of the lungs and heart.

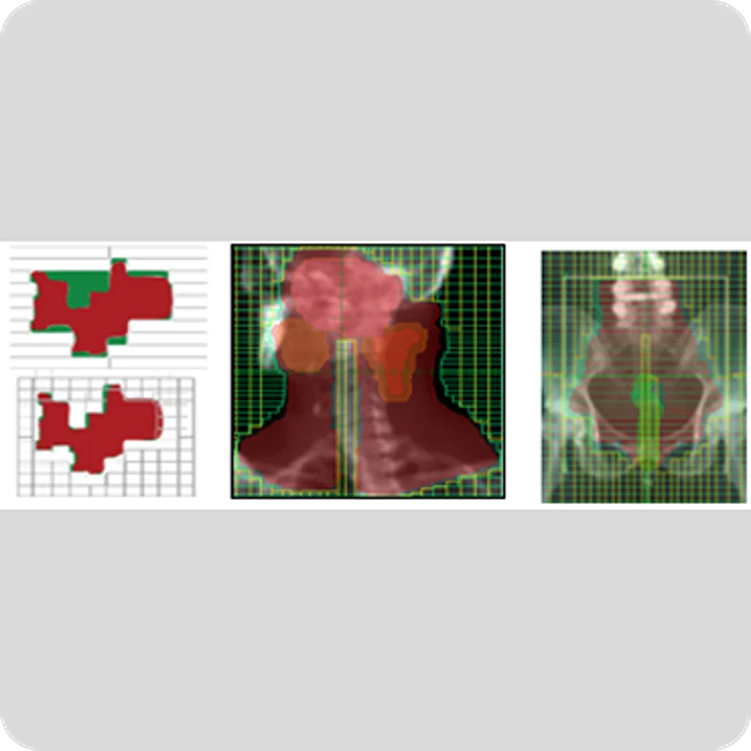

High Dose Conformity
For concave or island-shaped target boundaries, the dual-layer conformal design reduces radiation leakage to organs at risk. Within the treatment field, it also minimises paired leaf-end leakage that cannot be avoided with single-layer collimation, such as exposure to the spinal cord and pharynx in nasopharyngeal cancer, or the rectum in pelvic cases.
High Treatment Efficiency
A set of proprietary multi-segment algorithms allows the target to be divided into four sections. Each quadrant is modulated independently using opposing leaf banks, with coordinated motion between the two collimation layers to achieve efficient and precise intensity modulation.
MicroBeam Knife Stereotactic Radiotherapy System*
The MicroBeam Knife stereotactic radiotherapy system is a next-generation precision radiotherapy solution designed for stereotactic treatment of intracranial lesions and small extracranial tumours.
The system integrates miniature collimators with a conical motorised collimation device, delivering excellent positioning accuracy and dose conformity. It supports stereotactic radiosurgery (SRS) and stereotactic body radiotherapy (SBRT) treatment approaches, addressing the high demands for accuracy associated with high-dose clinical irradiation.
The system can be widely applied in the curative treatment of intracranial tumours, as well as lung, liver, prostate, and pancreatic cancers.
*Optional feature

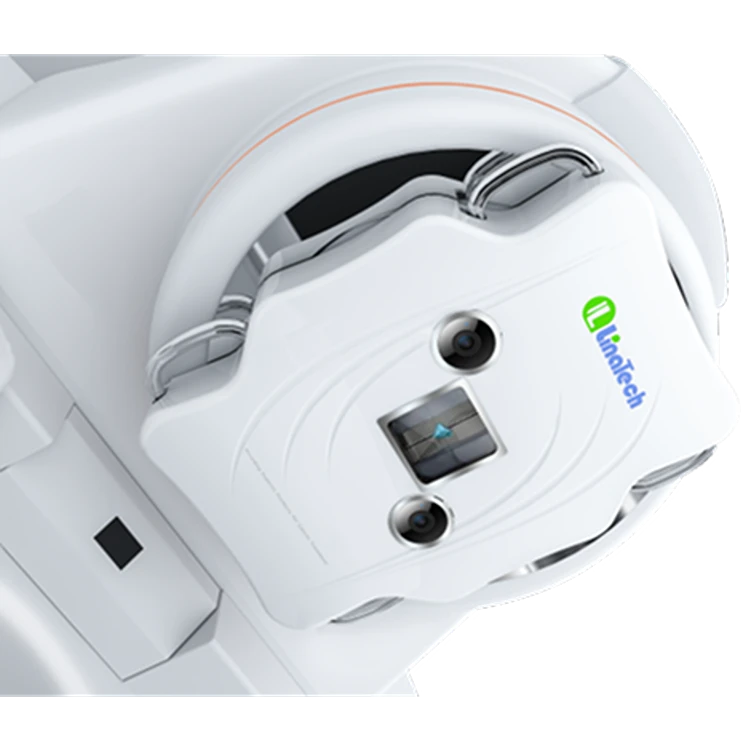

Onboard Multimodal Image Guidance
The system supports multiple image-guided modes, including kV-CBCT image guidance, MV-EPID image guidance, and BPS optical surface image guidance.
By integrating AI-driven automatic positioning algorithms, it enables fast and highly accurate position correction.
An advanced dynamic tracking system is also incorporated to capture and track tumour motion in real time, ensuring a high level of accuracy throughout the treatment process.
Onboard Multimodal Image Guidance
The system supports multiple image-guided modes, including kV-CBCT image guidance, MV-EPID image guidance, and BPS optical surface image guidance.
By integrating AI-driven automatic positioning algorithms, it enables fast and highly accurate position correction.
An advanced dynamic tracking system is also incorporated to capture and track tumour motion in real time, ensuring a high level of accuracy throughout the treatment process.
Intelligent One-Click Quality Control
The one-click accelerator quality control system enables fast and straightforward completion of all routine QA procedures, including daily, weekly, monthly, and annual checks.
It provides early warnings of potential equipment faults, significantly improving the timeliness and accuracy of after-sales service and preventive maintenance.
Supports non-flattened beam output to enable higher dose rates and more efficient treatment delivery.

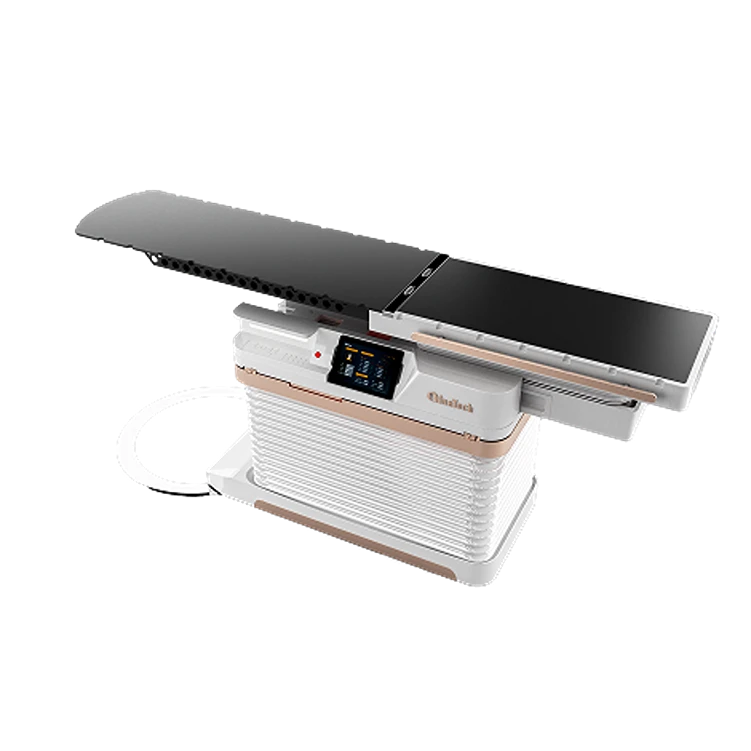

High-Precision Treatment Couch System (4D & 6D)
The system integrates high-resolution encoders, advanced intelligent drive units, and precision controllers to deliver digitally controlled speed regulation and accurate positional alignment. This enables highly precise automatic matching between the tumour target and the planned target position.
It is equipped with a remote intelligent rapid couch movement function, streamlining clinical workflows while ensuring both accuracy and efficiency during treatment through high-precision automatic target registration.
An extended range of couch movement further enhances patient accessibility and convenience during treatment.
High-Precision Treatment Couch System (4D & 6D)
The system integrates high-resolution encoders, advanced intelligent drive units, and precision controllers to deliver digitally controlled speed regulation and accurate positional alignment. This enables highly precise automatic matching between the tumour target and the planned target position.
It is equipped with a remote intelligent rapid couch movement function, streamlining clinical workflows while ensuring both accuracy and efficiency during treatment through high-precision automatic target registration.
An extended range of couch movement further enhances patient accessibility and convenience during treatment.
Built for Clinical Needs
VenusX integrates kV and MV imaging, BPS optical surface guidance (SGRT), and optional 4D or 6D treatment couch configurations to support accurate patient positioning and treatment delivery.
Supporting 3D-CRT, IMRT, VMAT, SRS, SRT, SBRT, and IGRT, the system offers flexible image guidance through multiple positioning modes. Its orthogonal dual-layer multi-leaf collimator technology improves dose conformity while helping protect organs at risk.
